Qwen-VL
- RK推理模型文件下载链接：https://pan.baidu.com/s/1HFSD9-JyLCB9J4ar0EMOwQ 提取码: root
1.编译可执行程序
1.进入源码目录
cd ~/rknn-llm/examples/Qwen2-VL_Demo/deploy
2.修改交叉编译工具链
vi build-linux.sh
将原本的：
set -e
rm -rf build
mkdir build && cd build
GCC_COMPILER=~/opts/gcc-arm-10.2-2020.11-x86_64-aarch64-none-linux-gnu
cmake .. -DCMAKE_CXX_COMPILER=${GCC_COMPILER}/bin/aarch64-none-linux-gnu-g++ \
-DCMAKE_C_COMPILER=${GCC_COMPILER}/bin/aarch64-none-linux-gnu-gcc \
-DCMAKE_BUILD_TYPE=Release \
-DCMAKE_SYSTEM_NAME=Linux \
-DCMAKE_SYSTEM_PROCESSOR=aarch64 \
make -j8
make install
修改为：
set -e
rm -rf build
mkdir build && cd build
GCC_COMPILER=aarch64-linux-gnu
cmake .. -DCMAKE_CXX_COMPILER=${GCC_COMPILER}-g++ \
-DCMAKE_C_COMPILER=${GCC_COMPILER}-gcc \
-DCMAKE_BUILD_TYPE=Release \
-DCMAKE_SYSTEM_NAME=Linux \
-DCMAKE_SYSTEM_PROCESSOR=aarch64 \
make -j8
make install
3.安装cmake
sudo apt install cmake -y
4.增加可执行权限并执行编译
chmod +x build-linux.sh
./build-linux.sh
运行效果：
baiwen@dshanpi-a1:~/rknn-llm/examples/Qwen2-VL_Demo/deploy$ ./build-linux.sh
-- The C compiler identification is GNU 11.4.0
-- The CXX compiler identification is GNU 11.4.0
-- Detecting C compiler ABI info
-- Detecting C compiler ABI info - done
-- Check for working C compiler: /usr/bin/aarch64-linux-gnu-gcc - skipped
-- Detecting C compile features
-- Detecting C compile features - done
-- Detecting CXX compiler ABI info
-- Detecting CXX compiler ABI info - done
-- Check for working CXX compiler: /usr/bin/aarch64-linux-gnu-g++ - skipped
-- Detecting CXX compile features
-- Detecting CXX compile features - done
-- Found OpenCV: /home/baiwen/rknn-llm/examples/Qwen2-VL_Demo/deploy/3rdparty/opencv-linux-aarch64 (found version "3.4.5")
-- Configuring done
-- Generating done
-- Build files have been written to: /home/baiwen/rknn-llm/examples/Qwen2-VL_Demo/deploy/build
[ 12%] Building CXX object CMakeFiles/llm.dir/src/llm.cpp.o
[ 25%] Building CXX object CMakeFiles/demo.dir/src/image_enc.cc.o
[ 37%] Building CXX object CMakeFiles/demo.dir/src/main.cpp.o
[ 50%] Building CXX object CMakeFiles/imgenc.dir/src/image_enc.cc.o
[ 62%] Building CXX object CMakeFiles/imgenc.dir/src/img_encoder.cpp.o
cc1plus: warning: /home/baiwen/rknn-llm/examples/Qwen2-VL_Demo/deploy/src/image_enc.h: not a directory
cc1plus: warning: /home/baiwen/rknn-llm/examples/Qwen2-VL_Demo/deploy/src/image_enc.h: not a directory
cc1plus: warning: /home/baiwen/rknn-llm/examples/Qwen2-VL_Demo/deploy/src/image_enc.h: not a directory
cc1plus: warning: /home/baiwen/rknn-llm/examples/Qwen2-VL_Demo/deploy/src/image_enc.h: not a directory
cc1plus: warning: /home/baiwen/rknn-llm/examples/Qwen2-VL_Demo/deploy/src/image_enc.h: not a directory
[ 75%] Linking CXX executable llm
[ 75%] Built target llm
[ 87%] Linking CXX executable imgenc
[100%] Linking CXX executable demo
[100%] Built target imgenc
[100%] Built target demo
Consolidate compiler generated dependencies of target imgenc
[ 37%] Built target imgenc
Consolidate compiler generated dependencies of target llm
[ 62%] Built target llm
Consolidate compiler generated dependencies of target demo
[100%] Built target demo
Install the project...
-- Install configuration: "Release"
-- Installing: /home/baiwen/rknn-llm/examples/Qwen2-VL_Demo/deploy/install/demo_Linux_aarch64/./imgenc
-- Set runtime path of "/home/baiwen/rknn-llm/examples/Qwen2-VL_Demo/deploy/install/demo_Linux_aarch64/./imgenc" to ""
-- Installing: /home/baiwen/rknn-llm/examples/Qwen2-VL_Demo/deploy/install/demo_Linux_aarch64/./llm
-- Set runtime path of "/home/baiwen/rknn-llm/examples/Qwen2-VL_Demo/deploy/install/demo_Linux_aarch64/./llm" to ""
-- Installing: /home/baiwen/rknn-llm/examples/Qwen2-VL_Demo/deploy/install/demo_Linux_aarch64/./demo
-- Set runtime path of "/home/baiwen/rknn-llm/examples/Qwen2-VL_Demo/deploy/install/demo_Linux_aarch64/./demo" to ""
-- Installing: /home/baiwen/rknn-llm/examples/Qwen2-VL_Demo/deploy/install/demo_Linux_aarch64/lib/librknnrt.so
-- Installing: /home/baiwen/rknn-llm/examples/Qwen2-VL_Demo/deploy/install/demo_Linux_aarch64/lib/librkllmrt.so
-- Installing: /home/baiwen/rknn-llm/examples/Qwen2-VL_Demo/deploy/install/demo_Linux_aarch64/./demo.jpg
5.进入可执行文件目录
cd install/demo_Linux_aarch64/
6.将预训练和转换完成的模型文件传输至开发板端中
baiwen@dshanpi-a1:~/rknn-llm/examples/Qwen2-VL_Demo/deploy/install/demo_Linux_aarch64$ ls
demo imgenc llm qwen2.5-vl-3b-w4a16_level1_rk3576.rkllm Qwen3-1.7B-rk3576-w4a16.rkllm
demo.jpg lib qwen2_5_vl_3b_vision_rk3576.rknn Qwen3-0.6B-rk3576-w4a16.rkllm Qwen3-4B-rk3576-w4a16.rkllm
2.模型推理
2.1 Qwen2.5-vl-3B
1.导入依赖和环境变量
export LD_LIBRARY_PATH=./lib
export RKLLM_LOG_LEVEL=1
2.执行程序
./llm ./qwen2.5-vl-3b-w4a16_level1_rk3576.rkllm 128 512
argv[1]
model_pathRKLLM 转换后的模型文件路径，例如./qwen2.5-vl-3b-w4a16_level1_rk3576.rkllm。argv[2]
max_new_tokens每次生成回答时最多输出多少个 token（整数）。例如 512。argv[3]
max_context_len模型一次能接受的最大上下文长度（提示 + 已生成的文本）。例如 2048。
运行效果如下：

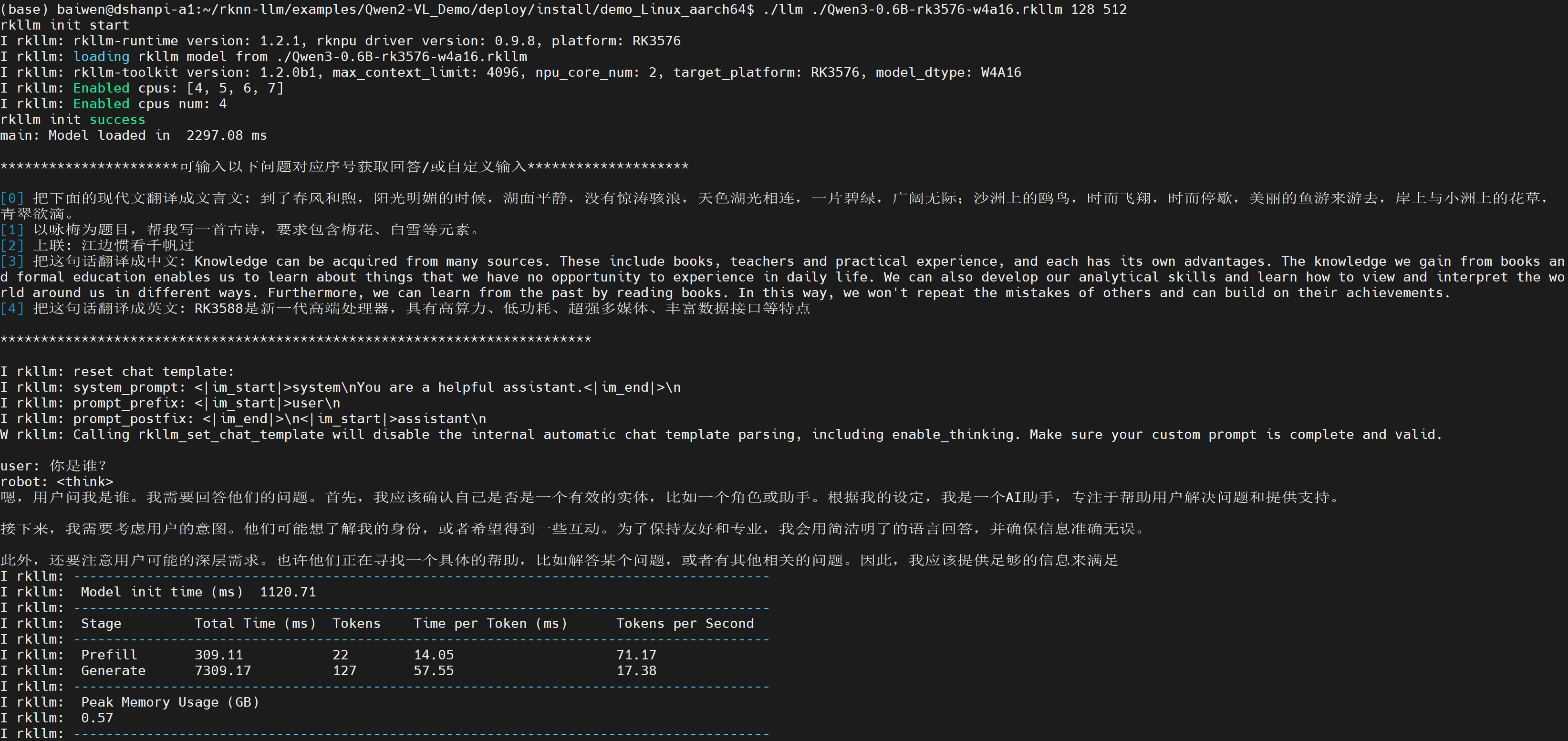

2.2 Qwen3-0.6B
1.导入依赖和环境变量
export LD_LIBRARY_PATH=./lib
export RKLLM_LOG_LEVEL=1
2.执行程序
./llm ./Qwen3-0.6B-rk3576-w4a16.rkllm 128 512
运行效果如下：

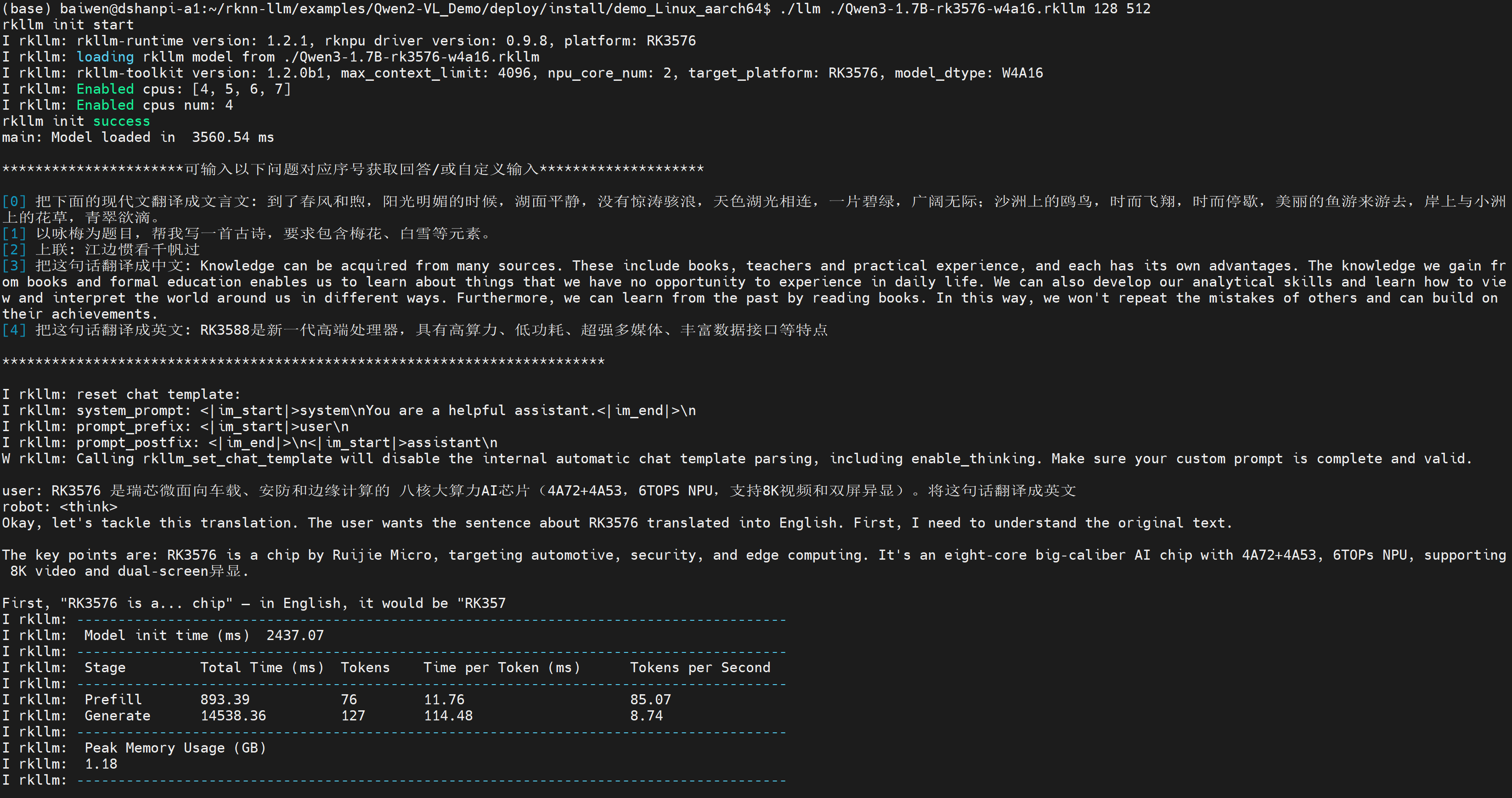

2.3 Qwen3-1.7B
1.导入依赖和环境变量
export LD_LIBRARY_PATH=./lib
export RKLLM_LOG_LEVEL=1
2.执行程序
./llm ./Qwen3-1.7B-rk3576-w4a16.rkllm 128 512
运行效果如下：

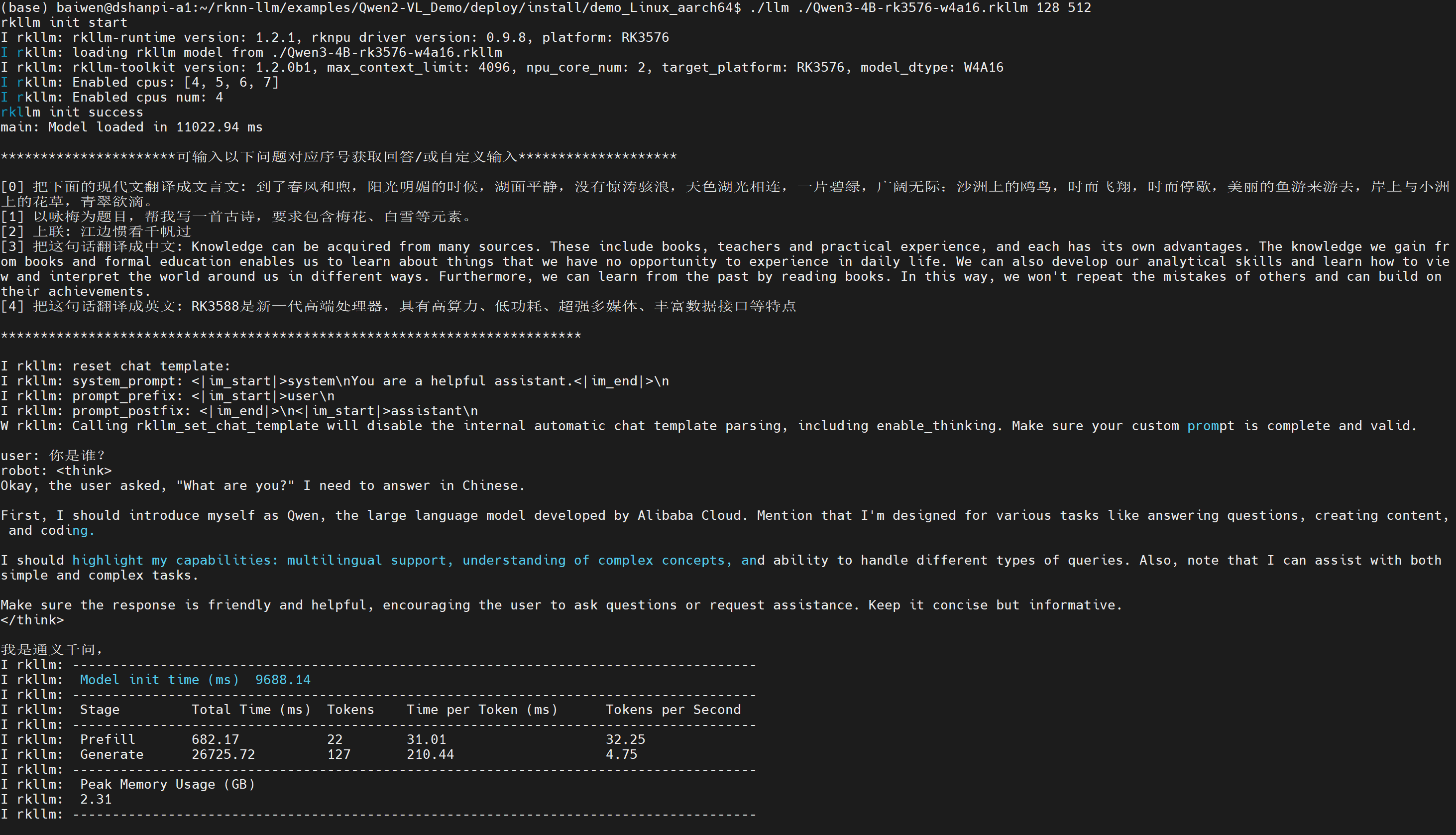

2.4 Qwen3-4B
1.导入依赖和环境变量
export LD_LIBRARY_PATH=./lib
export RKLLM_LOG_LEVEL=1
2.执行程序
./llm ./Qwen3-4B-rk3576-w4a16.rkllm 128 512
运行效果如下：
3.多模态模型部署
提示
注意：本程序需要在大于6GB内存的硬件上运行，如果内存小于6GB，可能会运行失败！
由于我们使用的是qwen2.5-vl-3b-w4a16_level1_rk3576.rkllm文本处理模型和qwen2_5_vl_3b_vision_rk3576.rknn图像处理模型，共同推理实现识别图像内容回复文本。
2.1 修改源码
进入~/rknn-llm/examples/Qwen2-VL_Demo/deploy/src源码目录，修改main.cpp，将代码中的：
#define EMBED_SIZE 1536
修改为：
#define EMBED_SIZE 2048
原因是：Qwen2-VL 系列模型提供 2B、3B、7B 等多种参数规模。不同规模的模型，其视觉编码器（Vision Encoder + Projector）输出的图像特征向量维度各不相同：2B 模型为 1536 维，3B 模型为 2048 维，7B 模型为 3584 维。我们使用的3B的模型，需填入：2048
修改完成后，需要重新编译源码，回到编译目录下：
cd ~/rknn-llm/examples/Qwen2-VL_Demo/deploy
执行编译命令：
./build-linux.sh
进入可执行文件目录：
cd install/demo_Linux_aarch64/
将预训练和转换完成的模型文件传输至开发板端中：
baiwen@dshanpi-a1:~/rknn-llm/examples/Qwen2-VL_Demo/deploy/install/demo_Linux_aarch64$ ls
demo demo.jpg imgenc lib llm qwen2_5_vl_3b_vision_rk3576.rknn qwen2.5-vl-3b-w4a16_level1_rk3576.rkllm
2.2 运行程序
1.导入依赖和环境变量
export LD_LIBRARY_PATH=./lib
export RKLLM_LOG_LEVEL=1
2.执行程序
./demo ./demo.jpg ./qwen2_5_vl_3b_vision_rk3576.rknn ./qwen2.5-vl-3b-w4a16_level1_rk3576.rkllm 128 512 3
执行后如下所示：
baiwen@dshanpi-a1:~/rknn-llm/examples/Qwen2-VL_Demo/deploy/install/demo_Linux_aarch64$ ./demo ./demo.jpg ./qwen2_5_vl_3b_vision_rk3576.rknn ./qwen2.5-vl-3b-w4a16_level1_rk3576.rkllm 128 512 3
I rkllm: rkllm-runtime version: 1.2.1, rknpu driver version: 0.9.8, platform: RK3576
I rkllm: loading rkllm model from ./qwen2.5-vl-3b-w4a16_level1_rk3576.rkllm
I rkllm: rkllm-toolkit version: 1.2.1, max_context_limit: 4096, npu_core_num: 2, target_platform: RK3576, model_dtype: W4A16
I rkllm: Enabled cpus: [4, 5, 6, 7]
I rkllm: Enabled cpus num: 4
I rkllm: Using mrope
rkllm init success
main: LLM Model loaded in 7346.11 ms
===the core num is 3===
E RKNN: [08:04:38.229] rknn_set_core_mask: unavailable core mask found for current platform! max core mask = 3
model input num: 1, output num: 1
input tensors:
index=0, name=pixel, n_dims=4, dims=[1, 392, 392, 3], n_elems=460992, size=921984, fmt=NHWC, type=FP16, qnt_type=AFFINE, zp=0, scale=1.000000
output tensors:
index=0, name=34548, n_dims=2, dims=[196, 2048, 0, 0], n_elems=401408, size=802816, fmt=UNDEFINED, type=FP16, qnt_type=AFFINE, zp=0, scale=1.000000
model input height=392, width=392, channel=3
main: ImgEnc Model loaded in 7752.90 ms
I rkllm: reset chat template:
I rkllm: system_prompt: <|im_start|>system\nYou are a helpful assistant.<|im_end|>\n
I rkllm: prompt_prefix: <|im_start|>user\n
I rkllm: prompt_postfix: <|im_end|>\n<|im_start|>assistant\n
W rkllm: Calling rkllm_set_chat_template will disable the internal automatic chat template parsing, including enable_thinking. Make sure your custom prompt is complete and valid.
**********************可输入以下问题对应序号获取回答/或自定义输入********************
[0] <image>What is in the image?
[1] <image>这张图片中有什么？
*************************************************************************
user:
如果想让大模型分析图片中的内容可输入一下内容：
<image>What is in the image?
运行结果参考如下：
user: <image>What is in the image?
robot: The image appears to be a digitally created or manipulated scene featuring an astronaut on the moon's surface, lying down with their head resting on what seems to be a helmet or spacecraft part. The astronaut is holding a bottle of beer and has another bottle next to them. In the background, there are elements such as Earth visible through a crater in the lunar landscape, and some industrial structures like stairs leading up to an object that resembles a ladder or ramp.
The overall setting suggests a humorous or surreal take on space exploration, blending elements of everyday life with the vastness of outer space.
I rkllm: --------------------------------------------------------------------------------------
I rkllm: Model init time (ms) 5482.81
I rkllm: --------------------------------------------------------------------------------------
I rkllm: Stage Total Time (ms) Tokens Time per Token (ms) Tokens per Second
I rkllm: --------------------------------------------------------------------------------------
I rkllm: Prefill 4143.53 223 18.58 53.82
I rkllm: Generate 20911.60 116 180.27 5.55
I rkllm: --------------------------------------------------------------------------------------
I rkllm: Peak Memory Usage (GB)
I rkllm: 4.55
I rkllm: --------------------------------------------------------------------------------------
